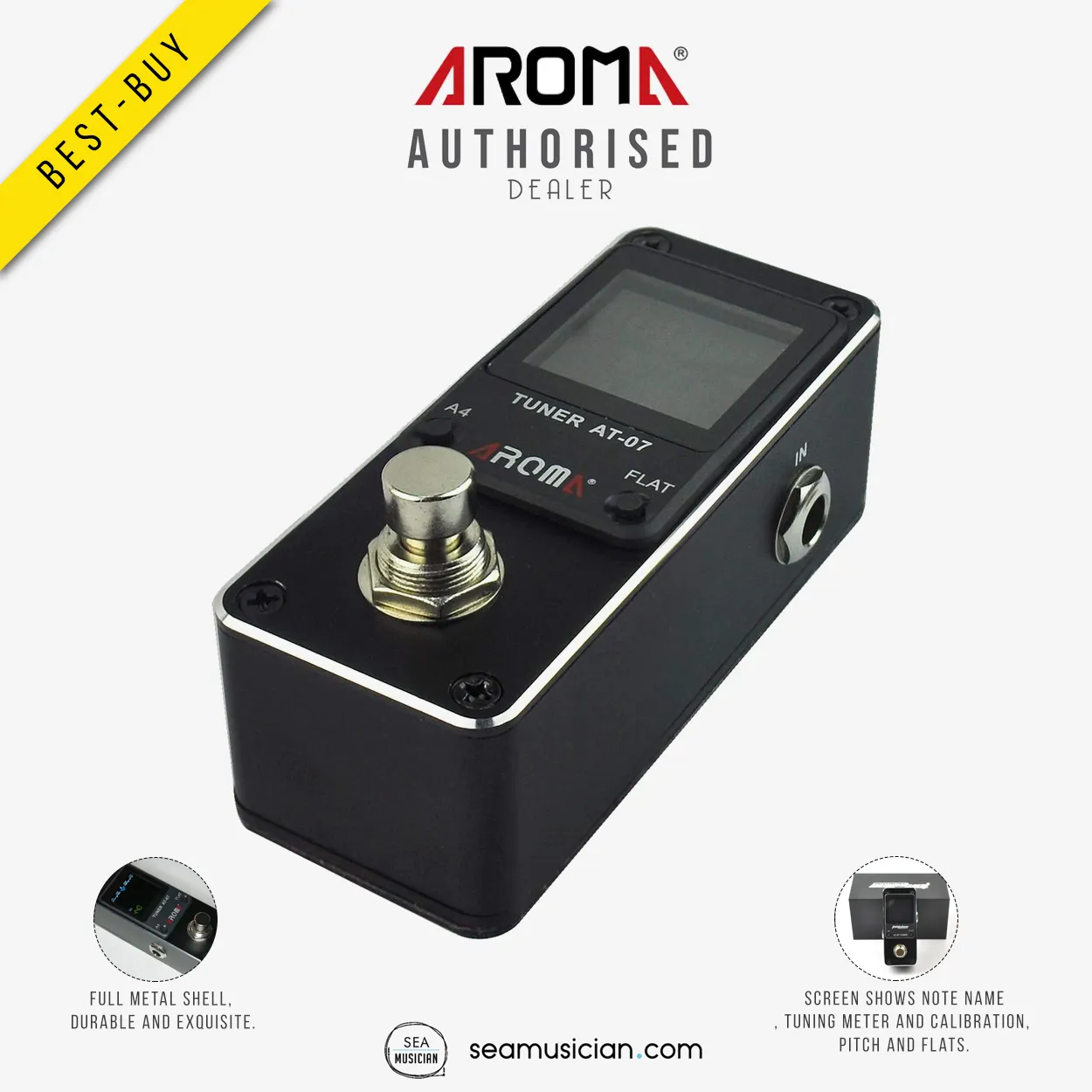

AROMA AT07 MINI CHROMATIC GUITAR TUNER PEDAL

The AT-07 is a high-precision chromatic tuner which has a lightning fast response to ensure that wherever you need to re-tune your strings it will be done with utmost efficiency. What makes the AT-07 even more versatile is that it is not just limited for use with standard 6-string electric guitars, but can also veraciously re-tune the strings of a 7-string guitar or a 5-string bass guitar. Its compact, light metal casing makes it easy to bring out on the road from one venue to the next to prevent any doubts of falling out of tune. It also gives the pedal added durability to endure your stomping down on your pedal board. It weighs just 155g so you can comfortably take it in your gig bag or equipment case wherever you go. Aroma have developed the AT-07 Tuner Pedal with an advanced inner circuit that gives you everything you need in a small yet solid metal chassis, and it features true bypass circuitry with a 3PDT switch to provide a constantly smooth signal.

HOW TO USE

1. Connect a DC 9V power into the pedal.

2. Link the input, and turn on the tuner by pressing on ON/OFF button.

3. If you want to change the pitch, then press A4 button. The pitch ranges from 430Hz to 450Hz.

4. If you wish to tune by note flat, press Flat button. Flats offer 4 steps: b, bb, bbb, bbbb.

5. Play a single note from your guitar, the note name will appear in the tuner screen. The screen color will change, and the tuning needle will move. The center blue tuning meter appears, and 2 blue triangles appear: note in tune.The left red tuning meters appear, and the left blue triangle appears: flat noteThe right yellow tuning meters appear, and the right blue triangle appears: sharp note.

6. The tuner has bypass function. When tuning finished, press ON/OFF button, the original guitar signal will get through without any distortion.

FEATURES

Full metal shell, durable and exquisite.
A4 for pitch button.
Flat for flat button.
Screen shows note name, tuning meter and calibration, pitch and flats.
Output jack: 1/4" mono audio jack for signal output.
Input jack: 1/4" mono audio jack for connecting guitar.
True bypass footswitch design.

Model:  AT-07
Material: Aluminium Alloy
Tuning Mode: Chromatic
Pitch Range: 430-450Hz
Flat: b, bb, bbb, bbbb
Tuning Tolerance: -0.5 cent
Power supply: AC Adapter 9V DC (not included)
Item Size: 9 * 3.8 * 4.8cm / 3.5 * 1.5 * 1.8in
Item Weight: 131g / 4.6oz
